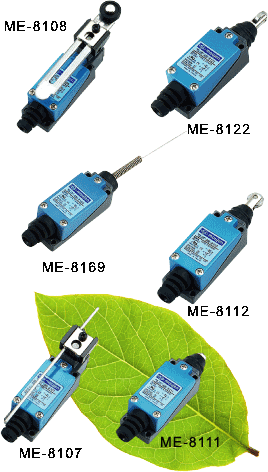

  MINI LIMIT SWITCHES  (Made in Taiwan)
CHARACTERISTICS :

Operating speed 0.5mm to 50m/sec
Operating frequency Mechanically:120 operations/min.
Electrcally:30 operatioms/min.
Contact resistance 15m max.(initial)
Insulation resistance 100M min,(at 500 VDC)
Dielectric strength 1,000VAC. 50/60 Hz for 1 minute between non-continuous terminals
2,000VAC. 50/60 Hz for 1 minute between each terminal and non-current carrying metal part and between each terminal and ground.
Vibration Malfunction durability:10 to 55 Hz;
1.5mm double amplitude.
Shock Mechanical durability:
Approx. 1,000m/sec2 (approx.100G's)
Malfunction durability :
Approx.300m/sec2 (approx.30G's)
Ambient temperature Operating : -15 to +70
Humidity 95% RH max
Service life Mechanically: 10,000,000 operations min
Electrically: 300,000 operations min,(2A,110VAC)MAX.
Degree of protection IEC 529 class IP65
