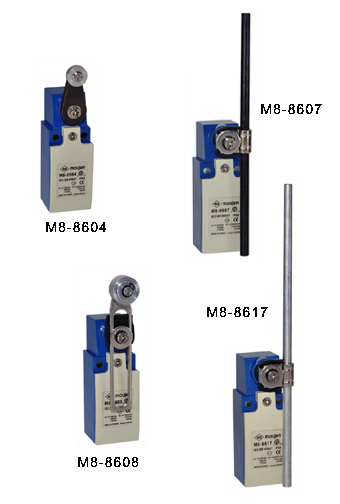

  M8 SERIES Positive Opening Limilt Switches  (Made in Taiwan)
Technical data:
Machanical variables
Lifespan
Standard-action contact Operations x106 8
Snap-action contact Operations x106 8
Contact temperature of roller head 100
Mechanical shock resistance (half-sinusoidal shock,20ms)
Standard-action contact   g 25
Snap-action contact   g 2
Basic unit   g -
Operating frequency Operations/h   6000
Actuation
Mechanical
Actuating force at beginning/end of stroke
Basic units 8601   N 1.0 / 8.0
Basic units 8611   N 1.0 / 8.0
Basic units 8602   N 1.0 / 8.0
Basic units 8603   N 1.0 / 8.0
Actuating torque of rotary drives   Nm 0.2
Max. operating speed with DIN cam
Basic units for angle of actuation 8601 a=0 / 30 m/s 1 / 0.5
8604 for angle of actuation a=0 m/s 1.5
8608 for angle of actuation a=30 , L=125mm m/s 1.5
8607 for angle of actuation L=130mm m/s 1.5
8602 for angle of actuation a=30 / 45 m/s 1
8603 for angle of actuation a=30 / 45 m/s 1
8611 for angle of actuation a=0 / 30 m/s 1 / 1
